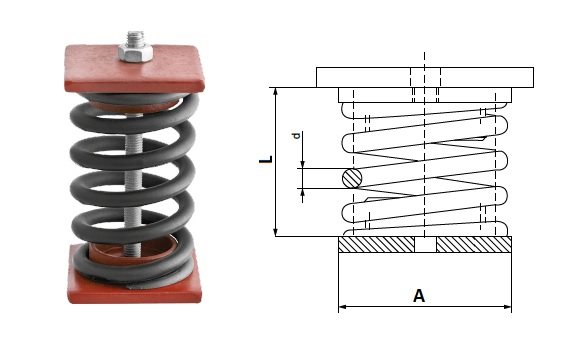

Spring dampersSpring dampers are structural elements commonly used for vibration damping where the damping element is the spring. In our offer we have the following series of spring dampers.
|
Spring damper TYPE |
1267 | 1268 | 1269 | 1270 | 1271 |
| Wire diameter [mm] | 5 | 7 | 9 | 11 | 13 |
| Pitch diameter [mm] | 40 | 54 | 62 | 76 | 88 |
| Height H [mm] | 86 | 94 | 114 | 140 | 215 |
| Number of coils - active | 5 | 4,5 | 5 | 5 | 7 |
| Total numer of coils | 6,5 | 6 | 6,5 | 6,5 | 8,5 |
| Weight | 0,12 | 0,30 | 0,6 | 1,08 | 2,44 |
| Work frequency [Hz] | 25 | 25 | 25 | 25 | 16 |
| Thickness of the plate pad [mm] | 6 | 8 | 8 | 10 | 10 |
| Static load | 110-170 | 170-1100 | 230-1700 | 300-2500 | 660-3600 |
Contact us and we will help you choose the optimal solution.
