Sieve decks

1. Woven sieve

Woven screens are characterized by high clearance, easy cleaning and long life. They are made with square or rectangular meshes.

There are two weaves in the production:

Straight weave - also called canvas weave. It is usually used for woven screens. In this weave the warp wires and threads interweave with each other, running alternately

up and down. This type of weave provides the most accurate mesh.

Diagonal weave - allows to make a screen from a larger wire diameter than in straight weave at the same mesh size.

It applies in those cases where the diameter of the wire vs the mesh size is so large that the wire might not be able to withstand deformations during the weaving process in canvas weave.

In diagonal weave each wire is interwoven with two wires, running alternately, under and over them, and the next weave is shifted by one wire.

Made of:

plain steel s235, chromium-nickel steel OH18N9, 1H18N9T, galvanised steel and spring steel.

Mesh:

Mesh range from 0.020 mm - square and rectangular meshes

Dimensions:

screen panels or rollers and complete forged screen plates suitable for mounting on linear and round screeners with dimensions

individually adapted to the size of the machine and working conditions.

Application:

The screens are used for screening of fine materials, filtration of liquid media. Basic equipment of vibrating machines.

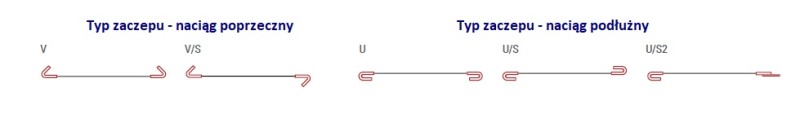

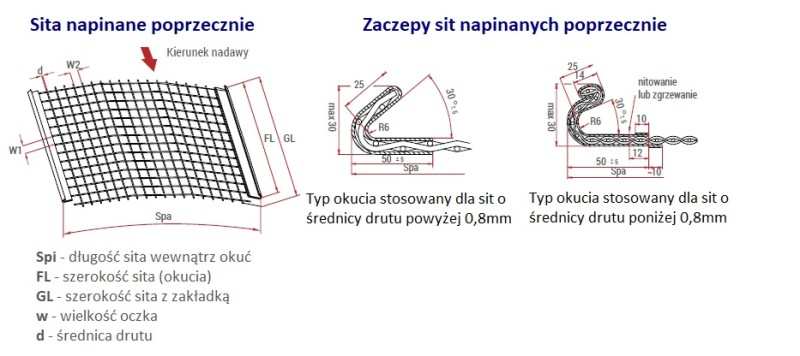

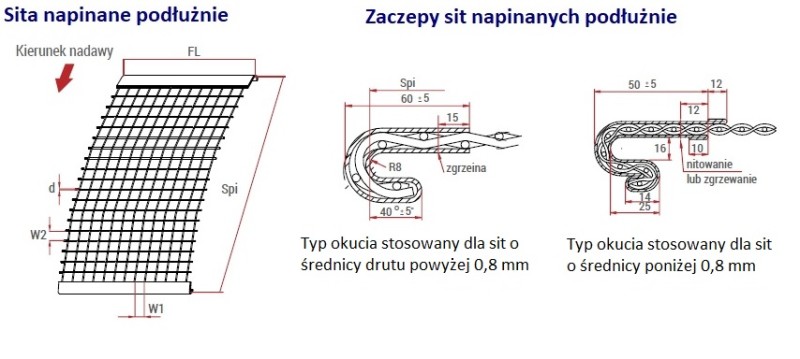

Methods of fixing screens in a vibrating screen:

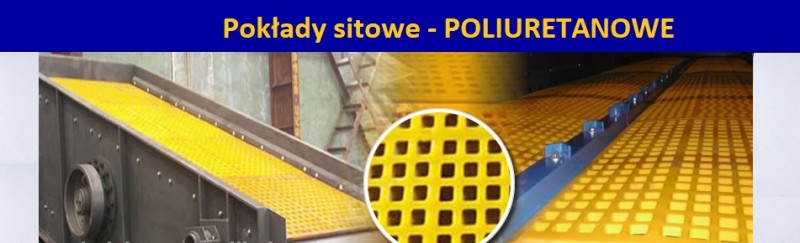

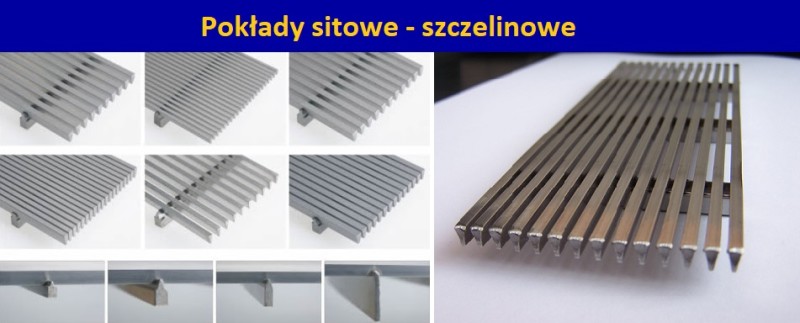

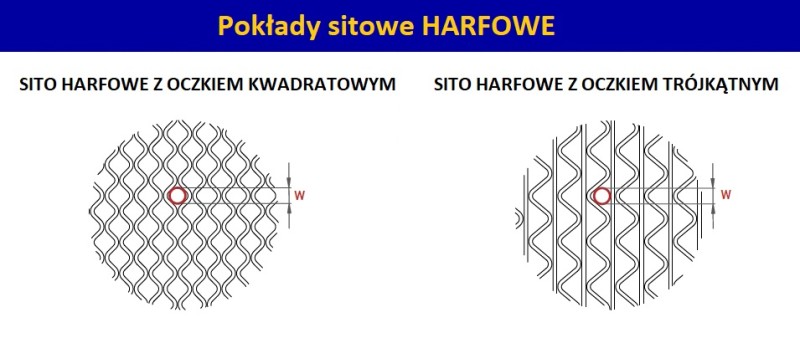

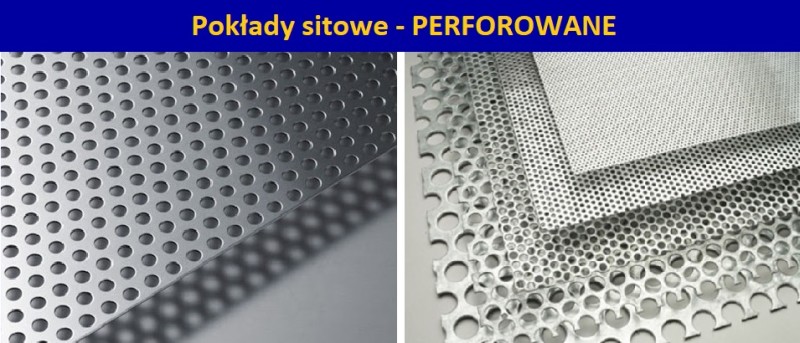

W naszej ofercie posiadamy także pokłady sitowe typu:
