OLI GmbH vibration motors

OLI vibrating motors: 2,4,6 poles, 1000,1500,3000 rpm

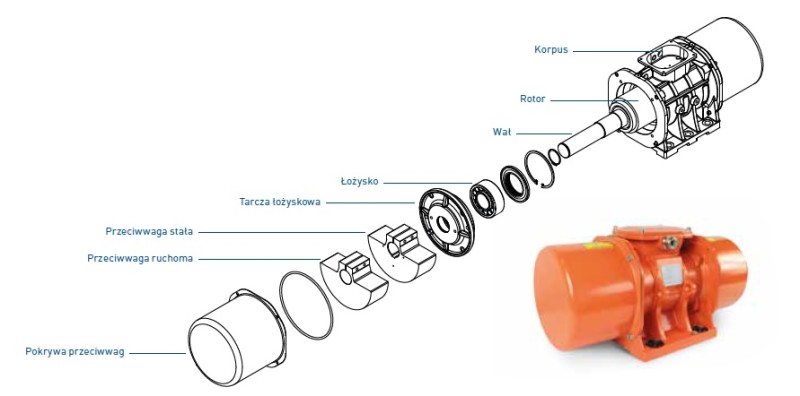

We are a distributor of OLI vibration motors. OLI electric motors are designed and manufactured using the latest technologies as well as materials and components of the highest quality. Motor bodies, bearing flanges and shafts are designed by FMEA and made using an alloy of first-class aluminium, cast iron and steel alloys resistant to hard working conditions guaranteeing safe work under all conditions.

• ATEX version for zones 21+22 as standard
• serial production in CSA version for "Class 1"
• compliance with all EC directives relating to drives
• delivery option for explosion hazard zones in ATEX version for zones 1+2
• delivery for 60Hz networks and other voltages

Operating parameters:

• driving force: 8 to 13000 N
• torque: 0.12 to 2330 kgcm
• available engines with RPM: 750; 1000; 1500; 3000 rpm
• power: 0.02 to 10 kW
• protection: IP66 EN 61241-10

We encourage you to read the catalogue of OLI products. You can download it by clicking the link below:

Download catalogue OLI

Vibration motors are selected based on the required amplitude of vibrations and the operational weight of the device structure. The vibration amplitude depends on the rotational speed of the vibration motors.
